Friday, August 1, 2014

Charcoal for the forge


Three blind men describe an elephant......


I am a rank amateur blacksmith, so take this for what it's worth (</= ∅, haha!). While there is loads of information on making bio-char for cooking and ag related applications, the volume of work pertaining to making blacksmithing charcoal is much less. Very little, in fact.

Charcoal is the original fuel for forge work, but was superseded long ago by mineral coal. Per given volume, coal has 5-10x the heat value as wood charcoal,  so a little bit goes a long way, and it's relatively cheap, once you find it.



A digression.......

I have always been fascinated by the potential of blacksmithing. Fire, Water, Earth, Air, and Spirit, the elemental five. Forging is directed change, transformative and primal. Forging is magic.

The Art of the blacksmith is taking common materials and reshaping them into a new and (hopefully) more useful form. Heat causes a partial phase change in the iron, making it more malleable. Saturating the iron with carbon and then cooling it quickly will result it steel, an iron crystal of sorts. The "fineness" of the crystal determines the degree of sharpness attainable, and ....by now you can see where I am going with this.

I have no illusions that I will be able to make a better to tool than what is already available. To the contrary, if I can make a tool comparable to even a lower quality Japanese chisel, I will consider it a great triumph! What I HAVE found, is that by making my own tools, I have a much greater appreciation of the TRULY good stuff. The trained eye sees differently.

Where was I going with this? I always wanted to do some smithing, but I kept getting hung up on the requirements. I wanted a forge, but didn't have the money for a rusty old riveting forge,  much less a decent propane setup. Heck, I didn't even know that you could USE propane! You can build a great coal forge, but the fire-pot and tuyere  are expensive and you can't forge without a proper fire-pot (I thought). And then there was the problem of sourcing the proper blacksmithing coal/hammer/tongs..... The list goes on.

Learning about Japanese tools, and how they are made, brought me back to the possibilities of forging. I learned that (some) blacksmiths still use a charcoal fired forge, just a glorified hole in the ground. Here was something that I could start with, at least.

You can build a usable forge out of a stack ordinary bricks from your yard. You can make a blower from a hair dryer. You can fuel your forge using plain old firewood charcoal and it will get hot enough to forge-weld iron...you can even just burn straight wood! A big chunk of steel from the scrapyard makes a good anvil. WHY DIDN'T I KNOW THIS 30 YEARS AGO! Optimal? Probably not. Workable? Absolutely!

When I was young(er) and exceedingly poor, I reeeeeaaly wanted some wood carving tools, but......you know. It turns out that all I needed was a ball-pein hammer, a railroad spike (anvil), a stump (for the anvil), bricks, wood, and a hair dryer. An old coil spring (from a cars suspension) will provide enough carbon steel for a whole set of tools. I had all of this stuff! My startup cost would've been $0!


OK, back to charcoal......




Making blacksmithing charcoal is, while not hard exactly, definitely a refined process. I had no idea that there was so much to know about charcoal! Charcoal is that stuff we use to grill steaks, right? Wrong (well, kinda right). Charcoal briquettes are made from charcoal that has been ground up and combined with additives and fillers to make a product that burns at an even, controlled rate. This is great for your average weekend BBQ, but terrible for forging.

Lump hardwood charcoal is available in the BBQ aisle at the store.

Hardwood lump charcoal


I found that it works fine for general hot work, but burns slow (so not very hot), leaves a fair amount of ash, and throws LOTS of sparks. Sparks hurt and make it hard to see and hear what's happening to the metal inside the forge. Hardwood lump charcoal is made from the lumbering offcuts and other less desirable pieces, so the chunks tend to be large knots and other twisty grain stuff. For blacksmithing use, you want a consistent fuel size, so those big chunks need to be chopped up into smaller pieces. By the time I had broken the big stuff down to a good usable size, I was often left with 3-4 largish pieces and a whole handful of small fines. Hardwood lump does work, though! Use what you got!

Softwood pine/spruce/fir charcoal burns hot and fast. Reaching welding temperature is no problem in my small stacked-brick side-draft forge, using a small 50 CFM bathroom fan as a blower.

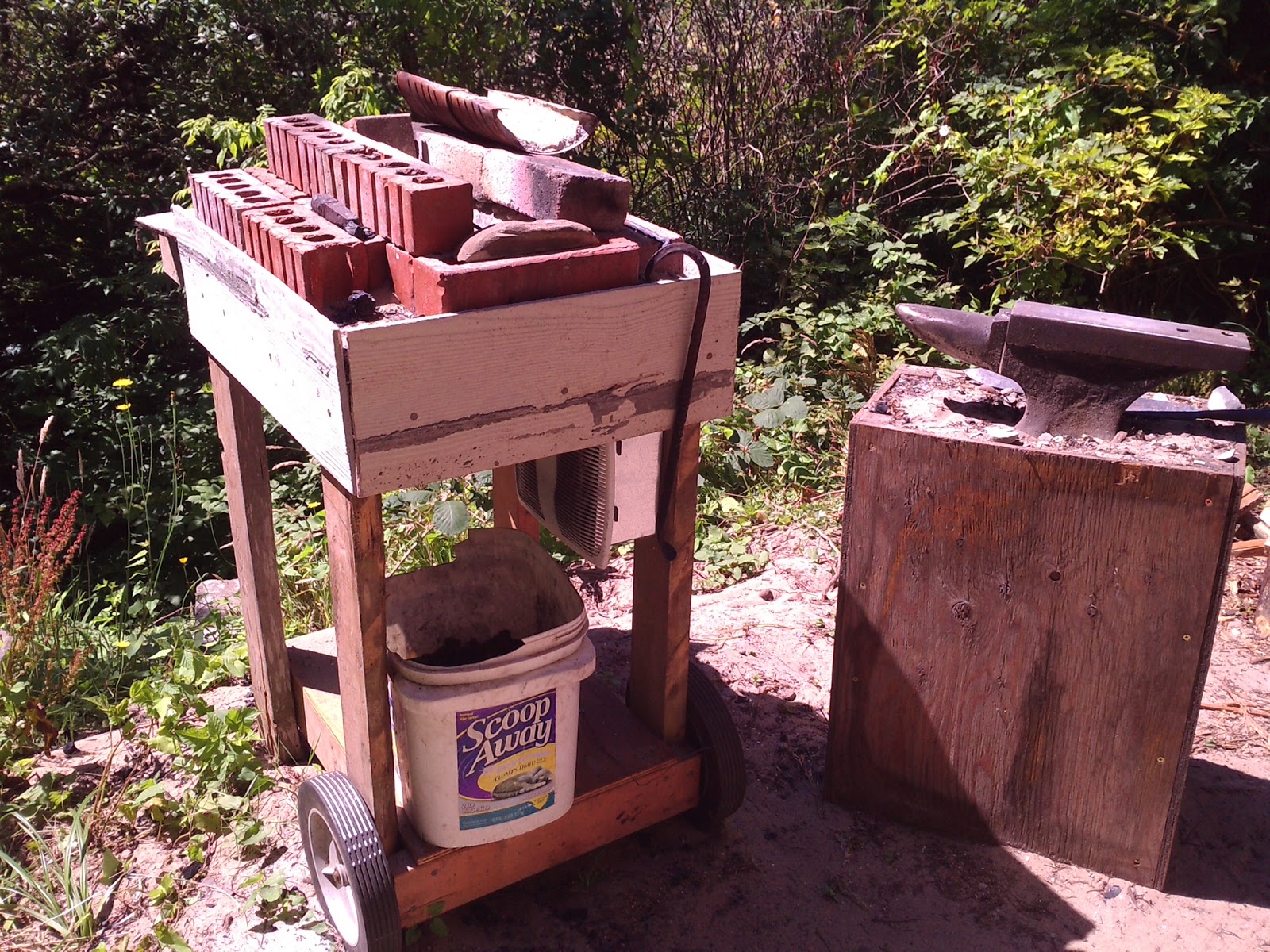

Cheap and ugly, but it works. The small $15 fan is adequate, and much quieter than a hair drier. I choke back the air to 50% for general hot work.

Charcoal doesn't need much air, meaning that as a beginning smith, I am less likely to overheat (burn) steel  accidentally. Less air means less oxidation and less decarburization at the forged edges of the workpiece. It does burn fast, though. I find that softwood charcoal is MUCH nicer to use, problem is, you have to make your own.



Bad charcoal is easy to make. I've got LOTS of this!


The "bad" charcoal is soft, and looks and feels a bit like old white Styrofoam. It is fragile, dusty, dirty, and burns quickly. Soft charcoal sounds dull when it rattles around in the bucket. 90% of the information out there seems to be on how to make this stuff.


That's because:
  1. It's easy.
  2. We don't know any better. Most of us have never seen, much less used good charcoal before. I know I hadn't!
Grab a barrel. Punch some holes around the bottom. Start a fire in the bottom of the barrel, then add wood until the barrel is full and everything is burning well. Cover the top (and any holes) to starve the fire of oxygen, then check your results the next day. I get 1/3 ash, 1/3 overcooked, and 1/3 undercooked. YRMV.

I have also tried packing in the wood, then starting the fire at the top. When the fire reaches the bottom, seal it up, then check the next day. My results were about the same as before. 1/3, 1/3, and 1/3.

The small pieces of soft charcoal are very light and bounce around in the forge, yet feel sticky and resist the metal when you push a length of iron onto the coal bed. The heat from this stuff feels more diffuse to me, softer, and is evidently good for tempering and other operations that call for a gentle heat. In the hand, this stuff is like grabbing a handful of packaging peanuts, and sets my teeth on edge.



You can make smaller amounts of charcoal using the "retort" method.


Fill a lidded metal container with wood, seal the top, and punch a few holes small enough to let some gases out without allowing too much oxygen in. Throw the whole thing in a bonfire and as the wood inside heats, those little holes will be shooting out plumes of gasses. Initially the gas is mostly water vapor, but as the temperature rises the remaining volatile gasses will actual flare off, like the stack at an oil refinery. Let it burn until fire stops shooting out of the holes, then remove the bucket from the heat source, open it when it cools off.

This works, but it's still awfully easy to overcook the charcoal, mostly due to the tendency of the process to self-fuel. Lots of people use a 1 gallon paint can. Mine is a 5 gallon container (and about worn out).



Again, this soft charcoal will work fine, but you can do better.

Lately, this is what I've been making.....


Crisp, tight, splits cleanly but makes VERY few fines. It makes a bright "tinkle-y" sound in the bucket, burns more slowly, and leaves almost no ash. It has a shiny, silver cast and burns with almost no scent. It's not perfect, and a bit overcooked still (I suspect), but it's a step in the right direction.

The soft stuff is on the left. The better stuff is on the right.


Soft and crumbly vs tight and tinkly.


Small cross sections of (free!) lumber scrap tend to carbonize quickly, more evenly, and are very easy to chop into small forge size bits. The small pieces maximize end grain exposure, losing moisture more evenly than longer pieces.


These were originally old stickers (from the lumber yard), used to separate stacks of lumber. Not particularly dry, but well aged and actually air-dry, not kiln-dry. The A/D seems to make nicer charcoal....... More volatiles, perhaps?


I take the same 5 gallon retort and pack it tightly with small precut wood chunks.




This is my charcoal yard. In the middle is the retort full of scraps, waiting for the lid to be clamped down and sealed.


On the left is a section of an old 30 gallon (actually the rusty remains of an old 55 gallon, reshaped) burn barrel, sunk into the ground, with a blue metal tube (chimney) to induce a draft. To the right is the fuel used to actual cook the charcoal. I'll actually only use about half of this small pile.


The outlet to the chimney, at the bottom of the burn barrel. The chimney induces a draft that results in a hotter, cleaner fire.


The two bricks elevate the retort, so that all surfaces are exposed to the heat.

The key element was to bury the burn chamber! The sandy soil insulates the burn barrel, both elevating the overall burn temperature and also regulating the heat produced. I tried the same setup, minus the burying part, but only got the usual overcooked charcoal.


Two chunks of wood on the bottom, then 8 or so pieces loosely stacked around the perimeter, finished by a small pile on top. It doesn't require much. This happens to be the demoed remains of our cedar deck, soft, half rotten stuff that nonetheless burns very quickly. This would be a great use for dried landscaping trimmings and hedge prunings.



Even with the chimney enhanced draft, there is still smoke, unfortunately. Smokeless charcoal is my grail.



Once the fire reaches temp, it will burn clean, with no smoke.


You can't see it in the photo, but the whole lower interior of the barrel is glowing red hot. The retort is jetting flame like a rocket, even sending flame up the chimney.



Once the retort stops jetting flame, I remove it  from the barrel, then pile a bit of dirt around the base, to seal off the oxygen. Two hours later (when cool), I check inside.


This batch turned out a touch overdone, maybe 1/2 and 1/2? I should've taken it out a bit sooner. I have been basing the removal time on how much the bucket weighs, but basically just guessing. The weight will be reduced by 1/2 or more.


The volume undergoes a reduction of around 25%.





It splits so nicely! I am shooting for around 2cm³.


This charcoal packs evenly in the forge, so the metal is easy to maneuver, and it burns cleanly, with a vary intense heat. Forge welding is getting easier (well....).



Not only does this stuff burn hot, it also seems to burn a tad longer (but still fast), and makes almost zero ash. In Japan they sell charcoal, to use for cooking on small grills, and for space heating in small ceramic pots. The preferred charcoal is called "white" charcoal, as opposed to "black" charcoal.

Often made from oak, white charcoal is hard, dense, and burns cleanly with little odor. It is a premium product.

White charcoal ceramic heater


Sometimes the "white" charcoal isn't actually white.....

You can buy this from Yahoo JP, 5 lbs for $20, shipping is extra though


....but often it is.

"White" white charcoal for sale (from China).

The process for making the two charcoals differs. White charcoal is made in large kilns, fired over multiple days.



When things are good and hot, the burning charcoal is raked out of the kiln....

From http://tainainousei.blog66.fc2.com/blog-date-200712.html


.....then buried in a clay/ash mixture to extinguish it quickly.

From http://7rinhonpo.jp/archives/25718203.html

This is what makes the "white" charcoal white.



Black charcoal is softer than "White", not as clean burning, but has higher heat potential. It is produced through applying indirect heat in an absence of oxygen. The lack of direct combustion allows the charcoal to retain much of its volatile elements. It's a balancing act.

A popular means of making the black charcoal in relatively small batches is in an Iwasaki style barrel kiln.


You load the wood into the hopper (shown open in this pic), seal it up, and start a fire in the burn chamber to the right. As shown, this will make soft black charcoal, suitable for ag use/soil amendment. Bury the whole unit in insulating soil, however, and it will produce hard black ("white") charcoal suitable for blacksmithing. That's what I want! This system is currently being used by a very skilled blacksmith on Vancouver island, Dave Friesen of Crossed Heart Forge.



My small-scale charcoal yard has lots of room for improvement, but for the small stuff that I have been working on, it has been adequate. Unfortunately, the components are about worn out, so it's time to put the thinking cap back on.

As far as the good stuff is concerned, I'm not there yet, but this is what I'm doing today......
