Japanese saw tuneup - straighten out those kinks! (part 2---A closer look)

I'm not done with this saw yet, not by a long shot. Things are improving, so I must be doing SOMETHING right, haha.

Going from this...... this. Not perfect yet, but definitely better. Hi Sammy! He likes saws, too.
The body of this ryoba is getting close.



The dark spots are areas that are still low. If you flip the saw over, you see that the image is nearly the inverse/negative.


Another interesting point to note here.... the dark horizontal lines running the length of the saw. I suspect that this is decent quality saw as it has a forge welded tang and some interesting file patterning and decoration on the neck (for lack of a better word). The saw was the subject of a certain amount of attention when it was made, and later on when it cracked, it was seen as being good enough to be professionally fixed. Are those longitudinal lines the visual sign of the tensioning hammer? Lines of induced stresses that serve to keep the cutting edge in tension?
I've bent a few saw blades in my day, but I've only been using a hammer to straighten them out again for the last ten years. Before that it was my knee and I got lucky, or it was into the trashcan. My success has been limited, which is why I have wanted to study this topic for so long. I've spent a lot of time hammering extremely thin bladed, super-cheap Chinese disposable saws, and while hammering thin yet relatively hard steel is very educational, it can be very disheartening. I guess that it is a good way to learn something, with little monetary risk. A $5 toolbox dozuki won't be missed, especially if you've already kinked it, haha.

This saw probably wasn't real cheap, the steel is rather hard, and the saw is at the thinner end of the ryoba spectrum. When I was hammering this guy back into shape, I might have been using a 2# hammer, but I only used a minimum of force (only the weight of the hammer falling, really), and the hammer marks are rarely visible. For this saw I tried to use my ears as much as anything. As the bump gets closer to lying flat on the anvils face, the sound gets just slightly louder, more "solid". I try not to hammer the already flat areas too much because that will compress and thin the metal. I don't want that yet. First I want to see how much of the big stuff I can fix.

Addressing one particular bump, I work in a circular pattern. Imagine the dent as a water droplet in still water. I want to start my tapping in the outer ripples, not at the center. Start in the center and you might make more ripples, or maybe the force just gets absorbed. You need to hit fairly hard before you see an effect because the curvature of the dent makes the area more rigid. If you begin at the outer edges and spiral inward, light taps work together and have a cumulative effect. Hopefully the bump gets smaller.
Anyways, things are coming along fine. Here is where I left off.

The rip side of the blade looks very straight.
The jointing of this side is good, and that helps with visualization.




The crosscut side isn't quite there yet, and still has a very persistent crease that's causing me difficulty.

It's close though, and part of the apparent wavyness of the blade is actually an optical illusion caused by this side being slightly out of joint. No biggie, something for later.

My hammering has not been random. I look for a dent to begin with, but which one? In my mind, I want to work my way backwards, begin with the most recent damage and finishing with the original insult that started this mess. At least that's my working theory. My thinking is that, say you have this perfectly straight and awesome saw...then the wood binds...the saw bends. Then later on the saw bends again in a different area, because the initial crease caused the blade to warp and made it more likely to bind again. The thing is, the saw won't bend in EXACTLY the same spot because the deformed metal is actually more rigid that a flat panel. Then that little bent spot gets squeezed, it sends out ripples.....You follow my thinking I'm sure.

The hard part for me is the "seeing" part.

If you sight down the length of the saw, you can tilt things this way and that, and if you get the angles right, those problem areas jump right out at you.

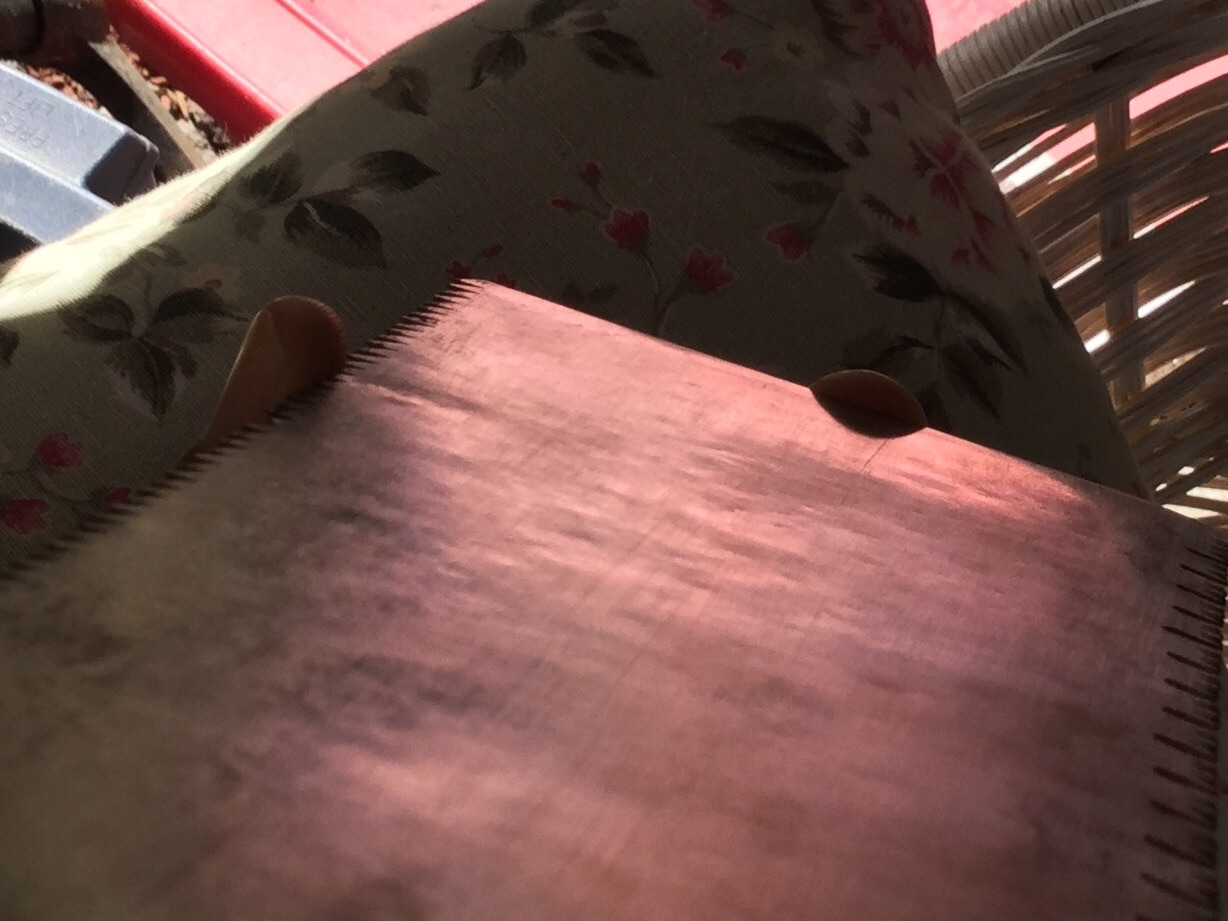

See my thumb towards the left (rip tooth side) of the saw blade? See the crease right next to it?


That crease is the repaired crack that was welded. I envision the stresses of that crack projecting out towards the center of the saw blade, towards my index finger. You can see a shadowy dip there in the middle.




Opposite the crack, on the crosscut side, is what remains of the worst crease.

Minimized, but not yet eliminated. You can't help but wonder if the two injuries are related. I would guess that the crack started the mess.





To make these stresses manifest, I need to compress the saw blade from each end, as though bending it into a U-shaped curve. If I just tilt the saw around, looking for clues almost none of this damage is actually visible.

To get these photos, I am holding the end of the handle in my mouth and sort of pulling the blade towards myself, while balancing the iPad and twisting every which way to get the light correct. My daughter came downstairs and asked me if I was trying to take a "selfie" of myself eating my saw. 9 years old and already a smartass.


This saw seems OK, until force is applied, then you start to see all of this craziness. Imagine what happens while you are cutting wood! This is how good saws go bad.

When I compress the blade, I can see how the repaired crack on one side, and the resultant crease on the opposite side, are creating one of those annoying "oil-can" dents, about 50mm in diameter and right in the middle. This type of dent pops back and forth, making a characteristic sound, Poka-poka (the Japanese name, BTW).


Twist things a bit and you see many areas that still need attention.

Many, many areas, haha.




The photos make the damage appear to be much greater than it really is, but that's a good thing. It's really not THAT bad.




If I increase the set of the teeth just a hair and re-set the teeth that I've mucked up the worst, I could use this saw and be totally happy with it. AND it cuts like a monster!

But I am having fun with this, and want to see how far I can take it. How clean can this thing get? My biggest problem is reigning in my enthusiasm! I get to hammering on the steel, the hammer and saw start to feel alive, begin to take on a life of their own. I find myself visualizing symphonies in my mind and hammering out music (It's a good thing my loving wife works in town and we are living out in the country, away from any neighbors, haha.).



As crazy as it sounds, I *KNOW* that you can hammer music into the steel, I can feel it. To my way of thinking, music is artfully applied force, directed into a particular pattern. Sound comes in waves. As you cut wood with these saws, each of those tiny teeth experiences vibration. You can tell a lot about a kanna by the sound that it makes as it shears the wood fibres. A saw is the same way. It sings in use. A choppy saw that grabs and scars the wood? It's out of tune. We want a harmony. This is more than a simple analogy.

Every strike of the hammer leaves a mark, even if it is not visible to the untrained eye. Hammering compresses the steel, making it microscopically thinner at the center of the strike, and raising ripples, like concentric circles. Again, think of ripples in a pond.


Sebastian just posted some perfect work on imaging and modeling this exact thing.

To borrow one of his images, a saw like this won't sound right.

The harmonics will be all distorted. This picture happens to fairly well describe what my saw looked like.

Also interesting....when I began the straightening work, if I flicked the saw blade with my finger, the saw gave out a muted ring. As we remove the irregularities that have been introduced into the saw plate, making it clean and straight, the harmonics improve. Now when I flick the blade, it gives out a clearer tone, similar to a tuning fork. And I'm not done yet.



A simple, flat saw blade, made in a factory and using modern steel, can give out a ring, loud and clear. But loud, brassy and sharp.


Nice and clean, but there is no complexity. This saw blade is a good piece of steel, but the thickness of the saw plate is an even thickness, as shown below.


The handmade saws are carved to shape using a Sen, to be thinner in the center. The thickness is retained at the base near the tang, and also towards the toe end of the saw. I am trying to keep the above image in mind as I examine the saw blade for distortion. This will also be in my mind when it comes time to tension the saw.



Below is my ideal. Courtesy of the incomparable Kunimoto.

Hand carved by sen, then burnished to even out the ridged surface and smooth the steel surface.


The sen and burnishing tool have really brought out the grain of the steel. I see thousands of marks from the hammer.......And all of those tiny black specks? I suspect tamahagane steel.

I don't know who made this saw, but I can assure you that it is a complex symphony.
